Penta Tandem QD-OLED hits 1,300 nits with five blue layers

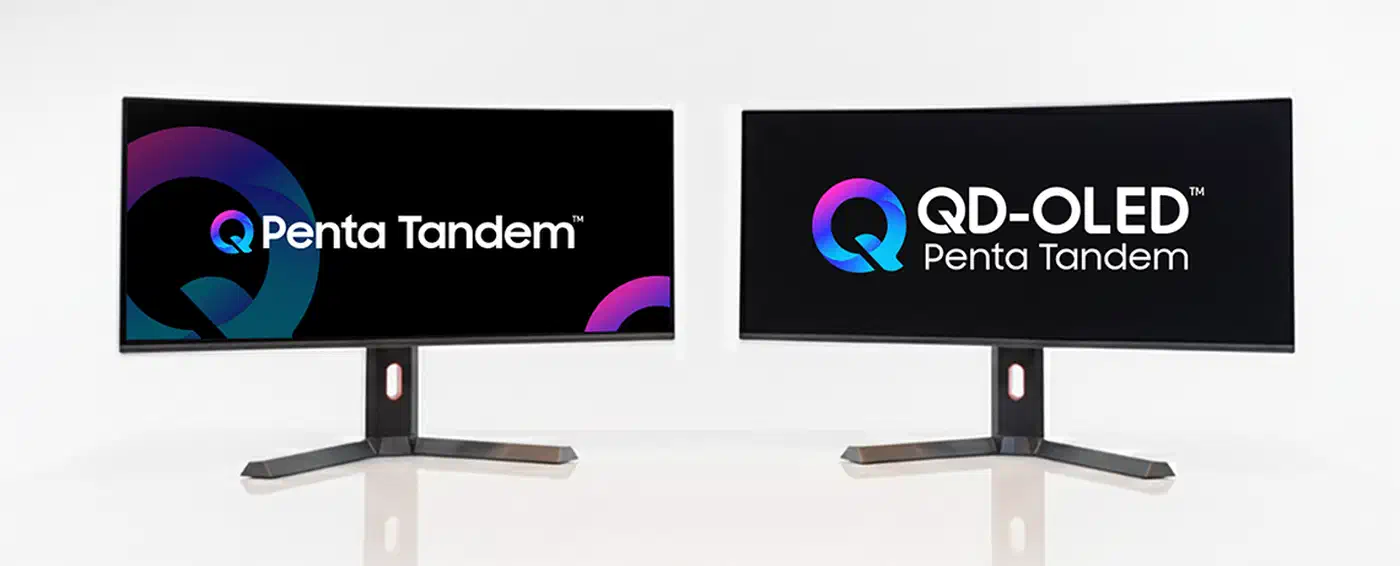

Penta Tandem QD-OLED is Samsung Display’s new name for a monitor panel that stacks five blue emitting layers instead of four. That extra layer lifts peak brightness to 1,300 nits. The name arrived in 2026, but the five-layer panel has shipped since 2025. So a 2026 badge can hide an older panel.

What is Penta Tandem QD-OLED?

Penta Tandem is a brand name Samsung Display uses for QD-OLED panels built on a five-layer blue stack plus its newer EL 3.0 emitter material. “Tandem” means stacking several OLED emitting layers on top of each other, and other makers use the word too: LG already ships Tandem WOLED and Tandem OLED. Penta Tandem is Samsung’s move from a four-layer stack to a five-layer one.

Samsung Display introduced the Penta Tandem branding in 2026. Yet the TFTCentral QD-OLED FAQ shows the same five-layer stack and EL 3.0 material were already inside a 2025 panel, a 27-inch 4K model.

Samsung Display makes every QD-OLED monitor panel on the market. MSI, Asus, Gigabyte, AOC and Samsung Electronics all buy from it. A Penta Tandem panel therefore shows up under many brands at once. A monitor maker’s own “generation” label often points at its own product line rather than the panel inside. That is why the same panel can appear in two model years under two different names.

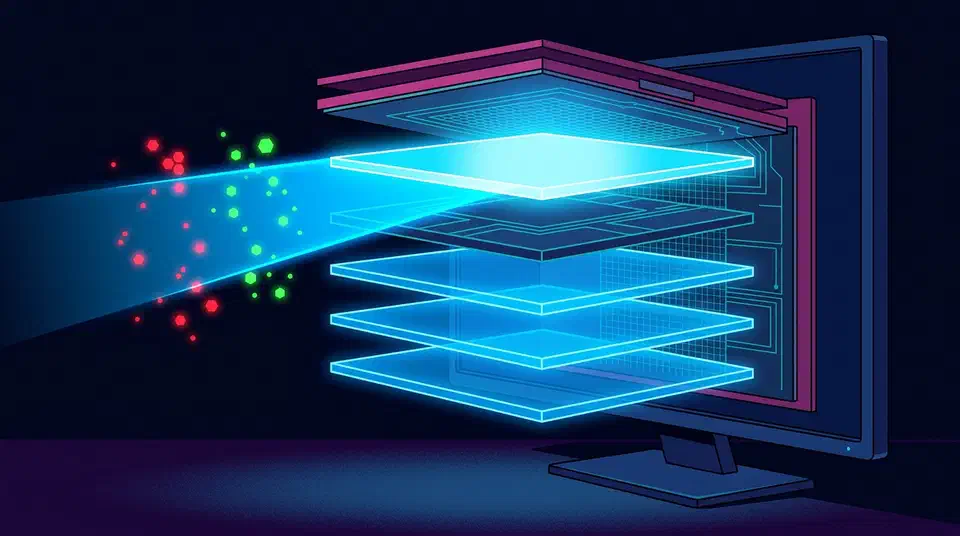

Why a fifth blue layer raises brightness

QD-OLED starts with a blue OLED base layer. That blue light drives quantum dots, which then produce the red and green you see. Blue is the hardest color to make both bright and long-lived, so it sets the ceiling for the whole panel. Stacking one more blue emitting layer adds more light output for the same drive current.

Samsung Display turns that extra output into two headline claims: the five-stack raises luminous efficiency by 1.3x and roughly doubles lifespan against the four-layer design. Both are manufacturer figures, and nobody has tested them independently yet.

A more efficient panel runs each pixel less hard to hit the same brightness. Less strain per pixel means slower panel wear. That is where the doubled-lifespan claim comes from, though the exact multiplier is unverified.

The VideoCardz report on MSI’s panels shows what this means in a shipping product. MSI says its MPG 272URX QD-OLED used the five-layer approach to claw back brightness that a higher pixel density had cost it.

What does 1,300 nits mean here?

The 1,300-nit figure is a peak measured on a small bright patch. Displays quote OLED peak brightness at a 3% on-pixel ratio, where the ratio is the share of the panel lit during the test. In practice that is a bright square covering 3% of a mostly dark screen. A full white document or spreadsheet drops far below that peak.

Alienware’s AW3426DW is one shipping example, and it quotes the same 1,300 nits as the WOLED AW3926QW next to it in the range. Earlier QD-OLED monitors peaked near a 1,000-nit barrier, and Tom’s Hardware frames 1,300 nits as a small step past it.

The 4,500-nit figure that circulates with Penta Tandem is a TV peak and does not apply to monitors. Monitors top out at 1,300 nits, and the two should never be quoted together as if a desktop screen reaches 4,500. For any QD-OLED brightness spec, always read the number with its measurement window. A 3% peak tells you nothing about a full-screen white page. One certification, DisplayHDR True Black 1400, now pins that full-screen figure down instead of leaving it to the peak.

Same panel, new badge

MSI says it began fitting the five-layer panels in early 2025, before the Penta Tandem name existed. It then grouped six QD-OLED models under the Penta Tandem umbrella for 2026. Two of those are 2025 monitors, and a third reuses the name of a 2024 model.

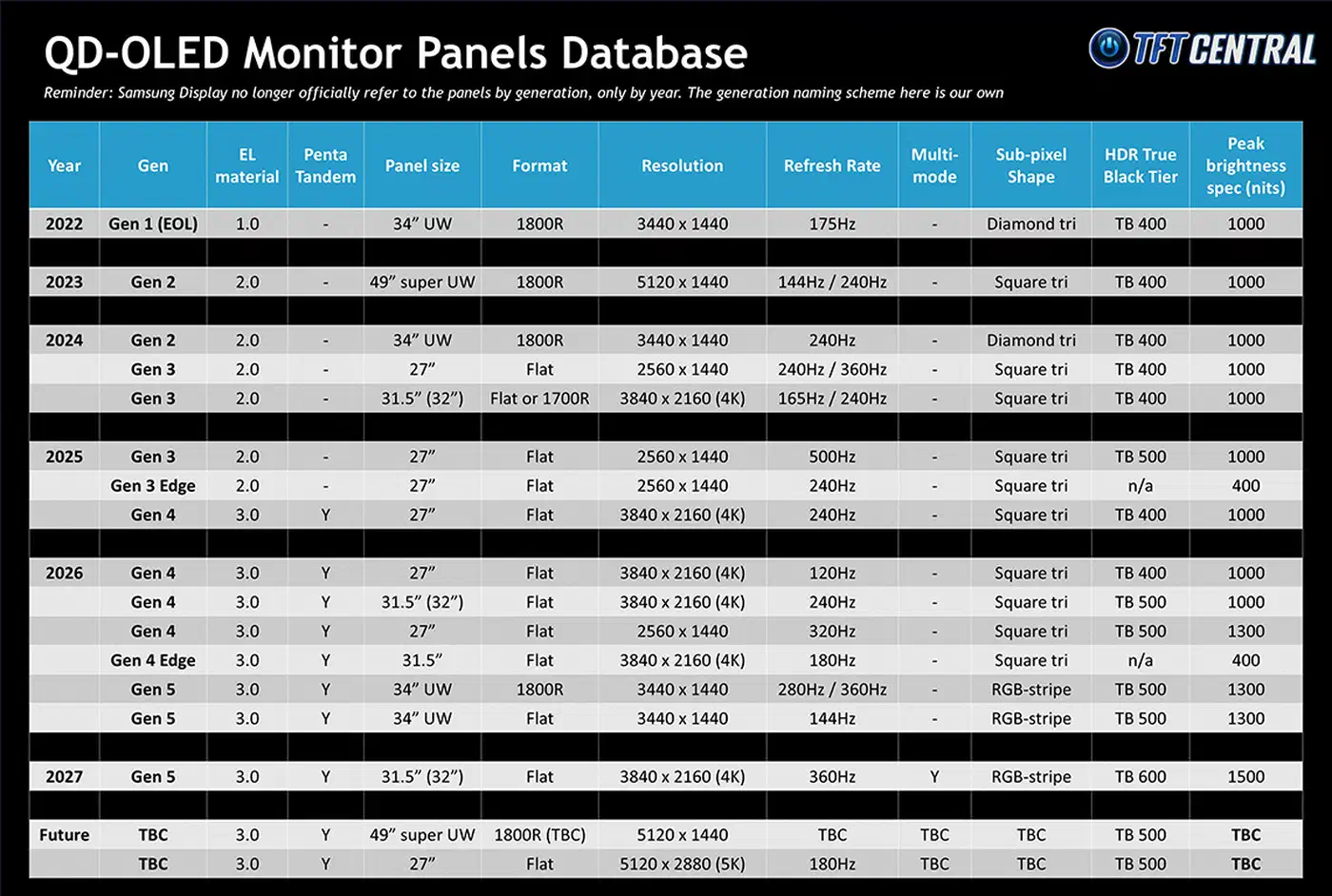

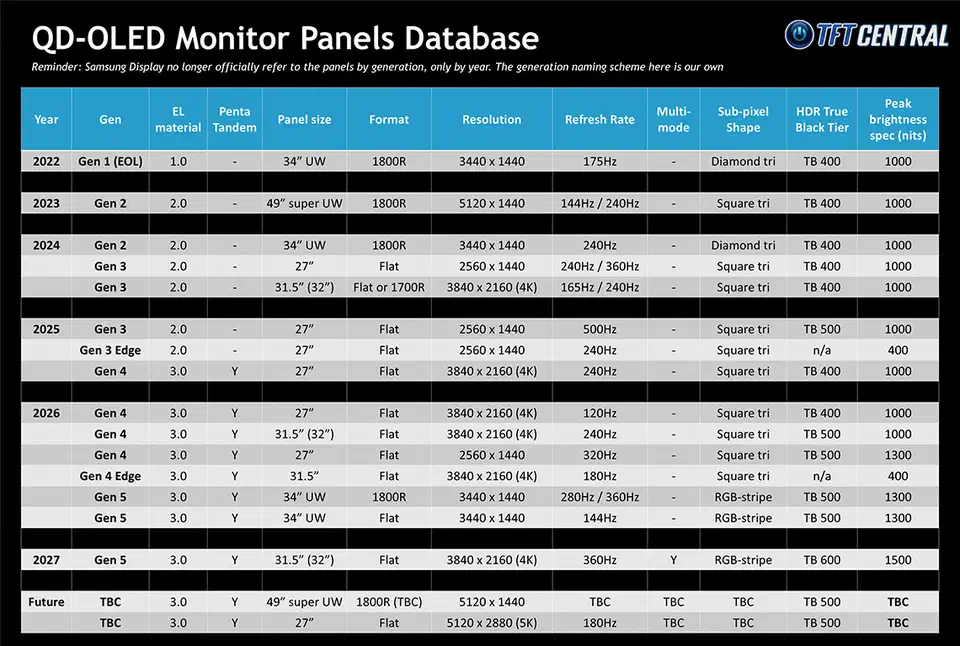

The two 27-inch 4K models are the 2025 panels under a new name. Ignore the year on the box. Match a monitor’s size, resolution and refresh rate against TFTCentral’s panel database to pin down the real panel generation. The spec table mixes generations, so not every one of the six carries the newest five-layer panel, and each model needs checking on its own.

Should you buy a Penta Tandem monitor in 2026?

Penta Tandem is an incremental panel improvement. For most buyers, the coatings do more in 2026 than the nit count does, and those are worth understanding before you spend. On these high-refresh gaming panels, flicker from frame-rate swings is another real-world quirk to weigh alongside them.

Samsung Display now offers two panel coatings that monitor makers can pick per model:

• QuantumBlack film hardens the panel from 2H to 3H, raising scratch resistance by about 2.5x, and it cuts the purple tint that ambient light throws onto a bare QD-OLED. Samsung Display’s own name is QuantumBlack, but each brand rebadges it: DarkArmor on MSI, BlackShield on Asus, ObsidianShield on Gigabyte.
• AGLR coating is a factory anti-glare, low-reflection finish for setups with harsh lighting, aimed more at pro use than gaming.

Both come from TFTCentral’s coating breakdown. A harder, less reflective screen changes daily use more than 300 extra nits on a 3% patch.

If you already own a 2025 five-layer panel, such as a 27-inch 4K QD-OLED, a 2026 Penta Tandem model of the same size and spec is likely the same glass, so the name alone is no reason to upgrade. If you are moving up from an older 1,000-nit QD-OLED and chase brighter HDR highlights, the higher small-window peaks are a fair reason to buy. Either way, do not pay a premium for the Penta Tandem badge on its own. Confirm the panel generation and the coating first, then decide.
