BATRAZZI's FOC kit smooths the FCX18 and FCX24 crawl

BATRAZZI FOC brushless systems swap the stock brushed drivetrain on the FMS FCX18 and FCX24 for a bundled motor, receiver and field-oriented ESC. That ESC drives the motor by rotor angle, so the crawl stays smooth near a stall, where a small brushed can cogs. Kits match specific trucks like the FCX24 K5 and FCX18 LC80.

What is a BATRAZZI FOC brushless system?

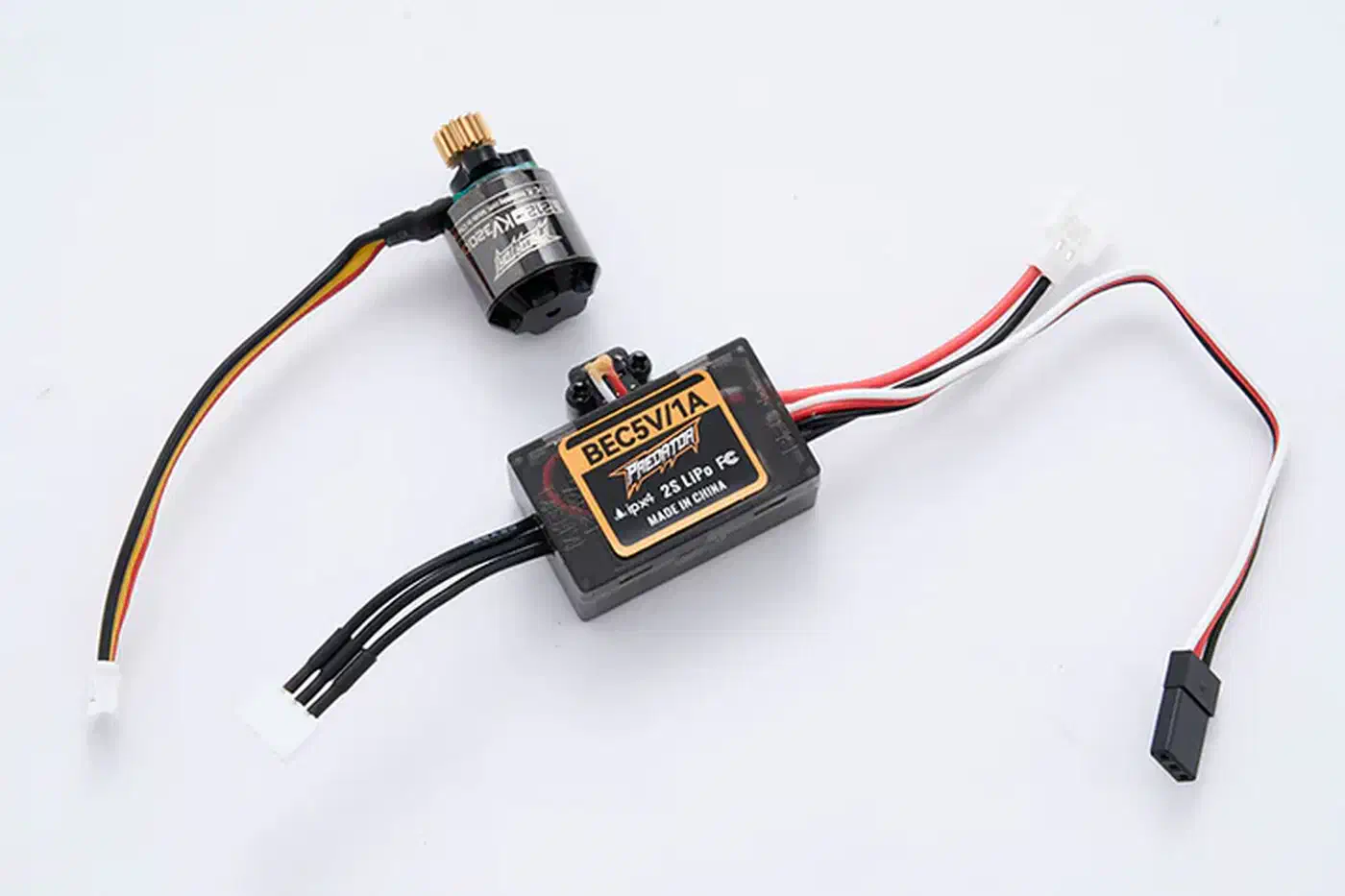

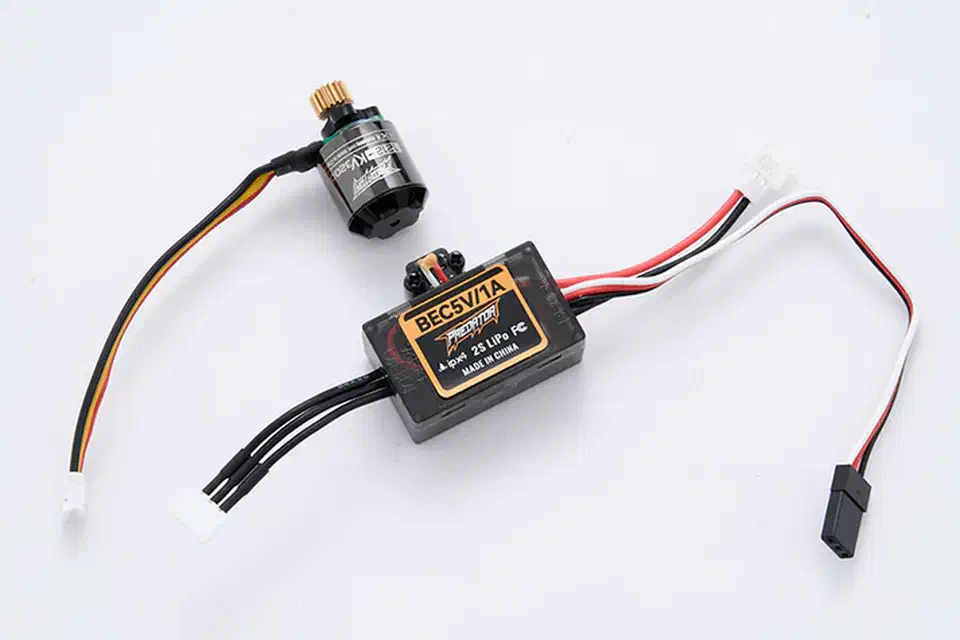

BATRAZZI is a 2026 brushless upgrade line built for the FMS FCX18 and FCX24 micro-crawler families, per Scale & Motion. Each system packs a brushless outrunner motor, a receiver and an FOC ESC into one bundle. That replaces loose parts sourced from several brands.

The line spans several products. Current listings include motor-plus-ESC-plus-receiver bundles, light-control systems, truck-specific kits and converter cables. The pitch is a clean brushless crawl with no custom wiring, for owners who want the drive and not the build.

How field-oriented control smooths a micro crawl

Field-oriented control drives the motor by tracking rotor angle, so torque stays smooth and steady. A plain brushed can, in contrast, cogs and stalls at the near-zero speeds crawling lives at.

A small truck feels the difference more than a big rig does. Tiny vehicles react faster to throttle inputs, so smoother low-speed control and less stutter show up clearly on a 1/24 or 1/18 chassis. On a technical rock section, one small throttle nudge decides whether a wheel grips or spins.

Scale & Motion lists the gains from a good brushless setup: smoother low-speed throttle, less stutter at crawl speed, better range, tighter climbing control and a cleaner feel. Those are the traits a slow, careful rock line rewards.

Which FMS FCX18 and FCX24 models the kits fit

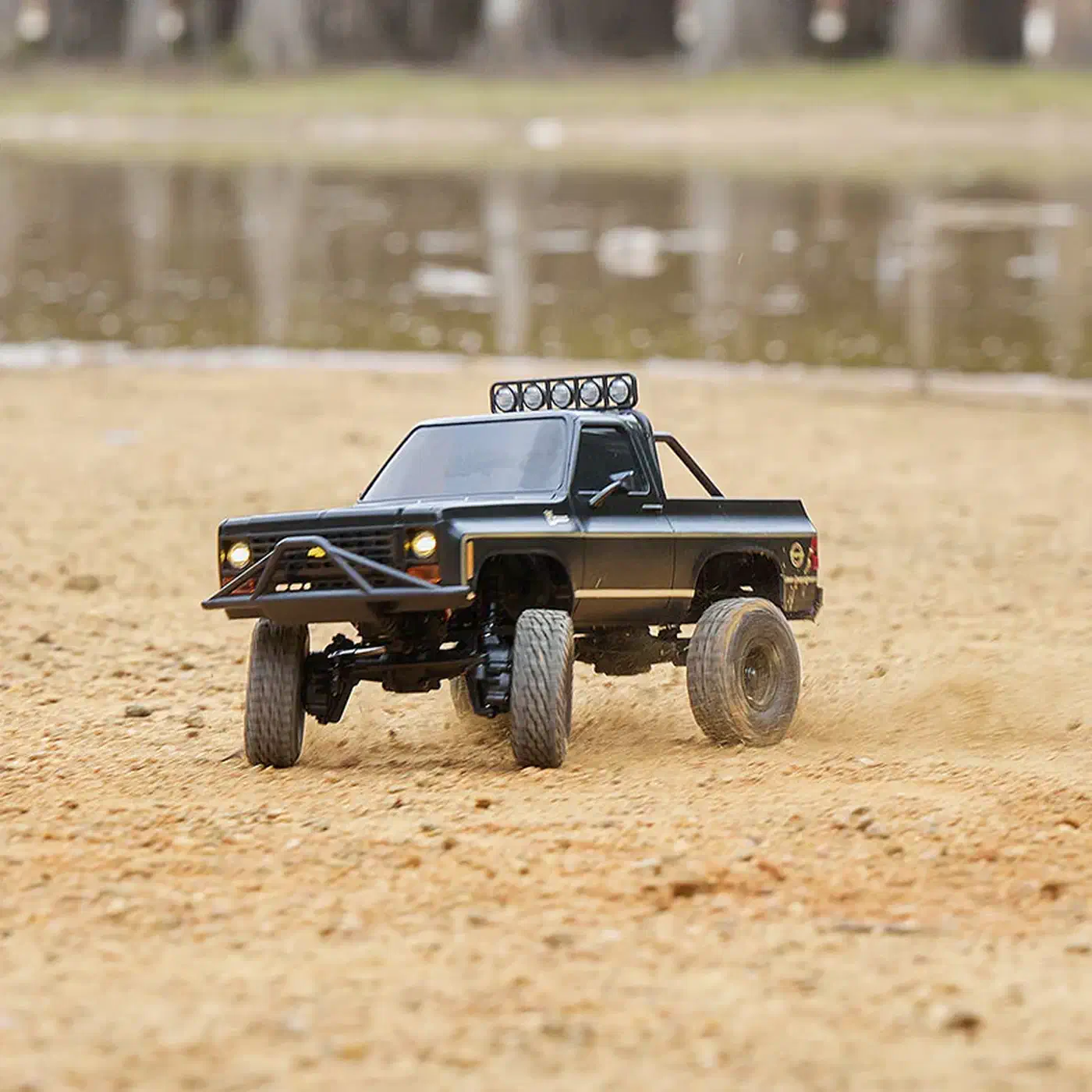

Confirmed platforms include the FMS FCX24 K5, the FCX24 Power Wagon and the FCX18 LC80, plus other FCX18 and FCX24 setups depending on the wiring. Fitment varies by model and version, so confirm your exact truck before you buy.

The parallel FMS brushless motor combo set for the FCX24 and FCX18 confirms the motor fits both platforms.

The motor needs mounting parts that aren’t in the box. The receiver can also foul some bodies, like the FCX18 K10 shell, or interiors, like the FCX18 Hummer EV, so check body clearance first.

Stock transmitter or the V6 upgrade?

The bundled receiver binds to the stock FCX24 and FCX18 transmitters, so basic driving works out of the box. But the dip-switch settings and light functions stop working on the stock radio once the brushless system is in.

For full control, FairRC’s combo listing recommends the V6 transmitter set, which pairs the MG44 handset with the R4P1 receiver. Sticking with your current radio costs you light and dip-switch control, while the V6 set keeps everything working. Scale builders who run working lights should budget for the V6 set from the start.

BATRAZZI FOC kit vs a loose brushless swap

A loose swap means picking a compatible motor, ESC and receiver from different brands, then solving mounting and wiring yourself. A bundle removes most of that guesswork.

For an FCX18 LC80 or FCX24 K5 owner who wants a smoother crawl without a wiring project, the bundle is the easier path.

Where BATRAZZI fits against FMS factory brushless combos

FMS sells its own factory brushless combo for the same trucks, the combo listed above, so the platform maker is moving to brushless too. Across 2026, the whole 1/24 and 1/18 micro-crawler segment is shifting from brushed to brushless.

BATRAZZI’s angle is the truck-specific bundle plus optional lighting and other upgrade paths, rather than one size-fits-all kit. It sits as the aftermarket option next to the factory combo, so a buyer weighs FOC smoothness against a plainer sensorless swap.
